Quattro Series
Wausau TileItem Added To Quote
Featuring our exclusive four-color blending technology, Quattro Series combines the beauty of porcelain with the proven performance of Wausau Tile’s concrete architectural pavers. We are the only domestic manufacturer capable of producing pavers with this state-of-the-art process, which brings even the most complex color schemes to life. Quattro Series is available in multiple sizes and thicknesses, twelve standard colors and a custom four-color blending that offers endless possibilities.
Paver Weights per Thickness
1 5/8” thick – 20.47 lbs. per foot
2” thick – 25.25 lbs. per foot
2 ¾” thick – 34.5 lbs. per foot
3” thick – 38 lbs. per foot
4” thick – 50.5 lbs. per foot
Available Sizes & Thicknesses
Square
-
42" x 42"4"
-
40" x 40"3"
-
36" x 36"2 3/4"
-
30" x 30"2 3/4"
-
27.5" x 29.75"3"
-
24" x 24"1 5/8", 2", 2 3/4", 3"
-
18" x 18"2"
-
12" x 12"2", 3", 4"
-
6" x 6"3"
-
4" x 4"3"
Rectangle
-
24" x 48"2 3/4"
-
24" x 36"2"
-
18" x 36"2 3/4"
-
15" x 30"2"
-
12" x 24"2", 2 3/4", 4"
-
12" x 18"2 3/4"
-
9" x 12"3"
-
6" x 12"2", 2 3/4", 3", 4"
-
4" x 8"3"
Plank
-
12" x 48"2 3/4", 4"
-
12" x 36"2 3/4"
-
8" x 24"2", 2 3/4"
-
6" x 36"2 3/4", 4"
-
6" x 24"2", 2 3/4", 3", 4"
-
6" x 18"2", 2 3/4", 4"
-
4" x 12"2", 4"
-
3" x 12"2", 4"
Geo
-
9" x 15"3"
-
8"2", 2 3/4", 3", 4"

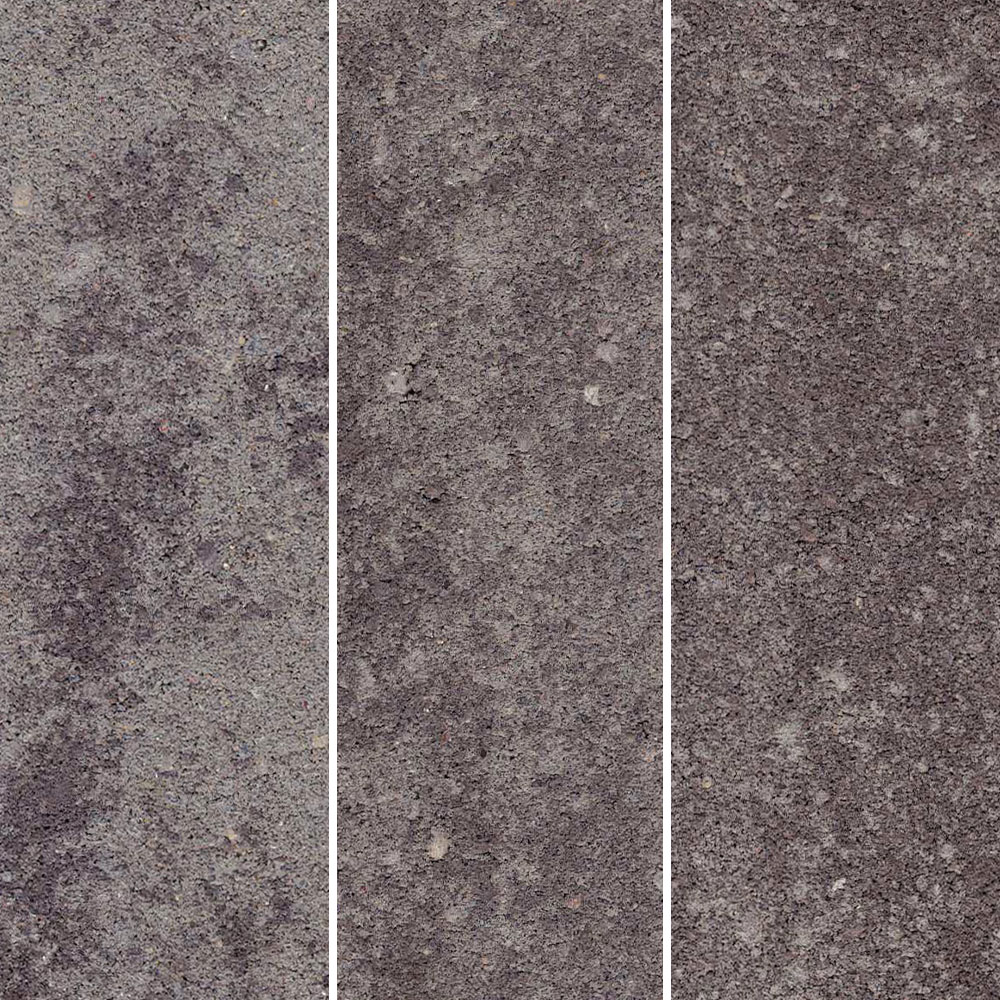

Available Colors
Available Colors
Quattro Series
Tests
Type | Result | Method | Size |
---|---|---|---|
Compression Strength | > 9,500 PSI avg. with no individual unit less than 8,000 PSI | ASTM C 140 | 24 x 24 x 2 |
Water Absorption | < 4.5% | ASTM C 140 | 24 x 24 x 2 |
Flexural Strength | > 1,800 pounds average | ASTM C 140 | 24 x 24 x 2 |
Freeze/Thaw | < 1% loss of dry weight (100 cycles) | ASTM C 1262 | 24 x 24 x 2 |
Center Load | 2,000 lbs. | WTCL 99 | 24 x 24 x 2 |
File Library
AP-Application-Chart-WT.pdf 232.9 KB
AP-Bituminous-Set-Installation-SPEC-WT.pdf 779.4 KB
AP-HSeries-Brochure-WT.pdf 8.28 MB
AP-LokDown-Installation-SPEC-WT1.docx 1.35 MB
AP-Mortar-Set-Installation-SPEC-WT1.docx 1.43 MB
AP-Open-Joint-Pedestal-Installation-SPEC-WT.docx 1.51 MB
AP-Quattro-Series-Flyer-WT.pdf 892.2 KB
AP-Sand-Set-Installation-SPEC-WT1.docx 1020.9 KB
AP-Terra-System-One-Brochure-WT.pdf 7.24 MB
AP-Thin-Set-Installation-SPEC-WT1.docx 1.37 MB
