Wausau Tile’s UltraFace architectural paver line features a subtle, yet classic style with a durable pressed concrete surface. Our standard colors are a practical pick for an endless array of applications. With its clean, solid look, UltraFace is a fashionable pick for custom color creations.
Paver Weights per Thickness
1 ¾” thick – 21 lbs. per sq foot
2” thick – 24 lbs. per sq foot
2 ¼” thick – 27 lbs. per sq foot
2 ½” thick – 30 lbs. per sq foot
2 ¾” thick – 33 lbs. per sq foot
3” thick – 36 lbs. per sq foot
Available Sizes & Thicknesses
Square
-
36" x 36"2½", 2¾", 3"
-
30" x 30"2¼", 2½", 2¾", 3"
-
24" x 24"1¾", 2", 2¼", 2½", 2¾", 3"
-
18" x 18"1¾", 2", 2¼", 2½", 2¾", 3"
-
16" x 16"1¾", 2", 2¼", 2½", 2¾", 3"
-
12" x 12"1¾", 2", 2¼", 2½", 2¾", 3"
-
8" x 8"2", 2¼", 2½", 2¾", 3"
Rectangle
-
24" x 48"2¼", 2½", 2¾", 3"
-
24" x 36"2", 2¼", 2½", 2¾", 3"
-
18" x 24"1¾", 2", 2¼", 2½", 2¾", 3"
-
16" x 36"2½", 2¾", 3"
-
15" x 30"2", 2¼", 2½", 2¾", 3"
-
12" x 24"1¾", 2", 2¼", 2½", 2¾", 3"
-
8" x 12"2", 2¼", 2½", 2¾", 3"
-
6" x 12"1¾", 2", 2¼", 2½", 2¾", 3"
Plank
-
12" x 36"2¼", 2½", 2¾", 3"
-
6" x 24"2", 2¼", 2½", 2¾", 3"
-
6" x 16"2", 2¼", 2½", 2¾", 3"
Available Colors
Available Colors
UltraFace
UF-15
SRI 78
UF-20
SRI 43
UF-30
SRI 27

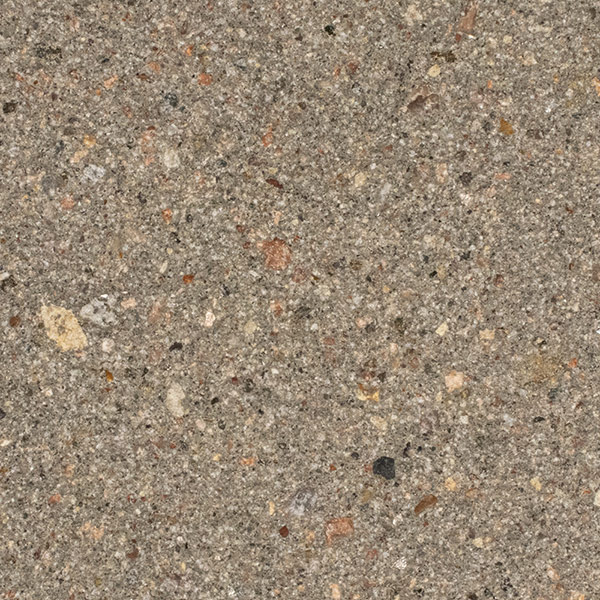

UF-31
SRI 34
UF-35
SRI 29
UF-40
SRI 27
UF-60
SRI 13
Tests
| Type | Result | Method | Size |
|---|---|---|---|
| Compression Strength | > 8,000 PSI avg. with no individual unit less than 7,500 PSI | ASTM C140 | 24 x 24 x 2 |
| Water Absorption | < 6% | ASTM C140 | 24 x 24 x 2 |
| Flexural Strength/Modulus of Rupture | Meets or exceeds standard | ASTM C1782 | 24 x 24 x 2 |
| Freeze/Thaw | < 1% loss of dry weight | ASTM C1262 | 24 x 24 x 2 |
| Center Load | 1,850 lbs. | WTCL 99 | 24 x 24 x 2 |
